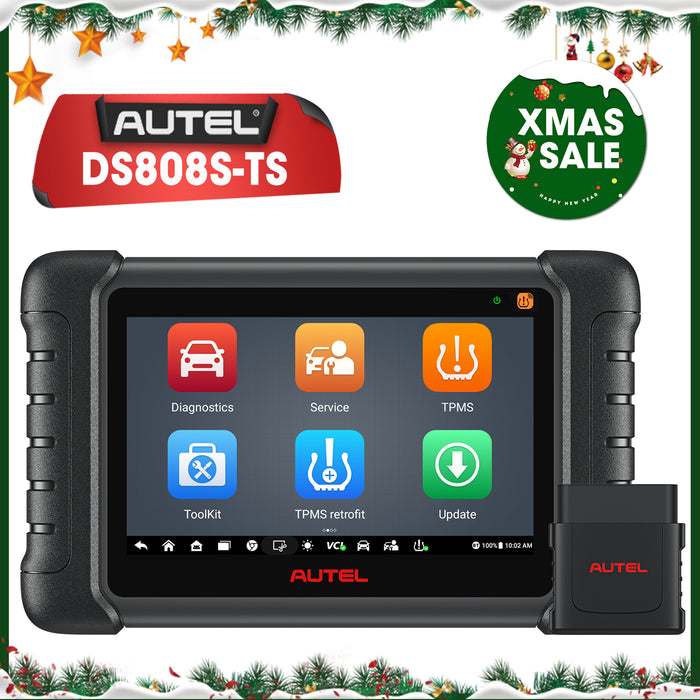

Autel MaxiDas DS808S-TS

2024 Autel Newest TPMS & Dignostic Tool - MaxiDas DS808S-TS, Featuring a fast quad-core processor,offers maximum convenience and swift diagnosis. Together with the ability to quickly read and clear OEM enhanced codes for TPMS module of the majority of the makes and models on the market, DS808S-TS provides you with superior special functions for TPMS services with ease.

Why Choose Autel MaxiDas DS808S-TS?

• 99% of vehicles covered - Autel Scanner DS808S-TS is capable to diagnose almost all vehicles in the market, making it an one-for-all diagnostic scanner.
• 1-Year Free Software Update -After 1 year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
• A Key to Access On-board Systems - ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System.. Autel Newest Diagnostic tool MaxiPro DS808S-TS can solve the vast majority of problems with your vehicle.
• Wireless Diagnosis - Conducting wireless diagnostics through VCI module, Newest diagnostic tool DS808S-TS will set you free from entangled wires.
• Compelete TPMS Services - Combination of MS906 and hand held TS601 which is a solid and well respected TPMS tool. As Advanced TPMS diagnostics for complete TPMS health check. Autel DS808S-TS can activate sensors, retrieve data, clone and program Autel MX-Sensors and pinpoint faults on exclusive TPMS Status Screen.
• Bi-Directional Control - DS808S-TS builds a mutual communication with onboard ECUs and execute every single one of your commands
• 30+ Special Functions - Autel DS808S-TS Supports 30+ commonly used hot functions to meet the needs of daily maintenance diagnostic and reset.
• Multi-Languages support - English/French/German/Spanish/Portuguese/Italian etc. 13+languages.

Autel DS808S-TS Compelete TPMS Services

Autel DS808S-TS is a perfect combination of Autel MS906 and TS601/608 and with same TPMS function as MS906TS. It is specially designed to fix all the TPMS issues, best used for complete TPMS health check, sensor activation, relearn , program, TPMS sensor retrofitting.

TPMS Relearn/Replaced

This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are four ways for Relearn:OBD II Relearn, Automatic Relearn,Stationary Relearn,Copy Relearn.

OBD Relearn: OBD Relearn is completed via the OBD diagnostic function without needing to drive, and the relearn procedures are basically the same for different models,quite efficient and time-saving(Recommend)

Automatic Relearn:Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving

Stationary Relearn:Stationary Relearn can be completed without relying on driving and OBD diagnostics. To activate this mode, it is usually necessary to perform a series of operations to let the vehicle enter the relearn mode first, then use TPMS tools to perform activation or deflation to complete the relearn.

Copy Relearn:Copy Relearn is to clone the sensor ID and tire location. Before performing Copy Relearn, you need to first obtain the sensor ID and tire location needed to be cloned, then use Autel mx808s-ts to clone and program the sensor ID, and install the sensor to the corresponding tire to complete Copy Relearn.

Autel Sensor Programming

This function allows to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not work. There are 4 ways to program MX-Sensor: Copy by Activation/OBD/INPUT/Auto Create. (Note:Programming function will only work with Autel MX-Sensor)

Copy by OBD: The tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.

Copy by activation: This function allows the user to copy the retrieved sensor ID from the activated sensor to the new MX-Sensor. It is used after the original sensor is triggered.

Copy by Input:This function allows users to program a new MX-Sensor with the ID of an original TPMS sensor.

Auto Create 1-20 Sensors:This function is used to automatically create a random sensor ID to program a new MX-Sensor.

TPMS Retrofit: This function is used to install the TPMS system in vehicles. A TPMS retrofit is only required if your vehicle is not installed with a TPMS system.

TPMS by OEM Part NO./For Workshop and Tire shop

If the mounted sensor is faulty and the part number is known to the technician, the technician can use this method to check the original sensor, and then write the retrieved information into a new MX-Sensor via Programming function.

If a customer needs to replace one or more tires including sensors, or purchase a lot of sensors for one vehicle model and the OEM part number of this model is known, this function can be used to program up to 20 sensors at the same time.

Advanced ECU-Coding

Autel DS808S-TS comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

OE-Level Full Systems Diagnosis

The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel DS808S-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.

• Read DTCs – It can access to the depth of every onboard systems to read and analysis the DTCs
• Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
• ECU Information – get the retrieved ECU information in detail.
• Live Data Stream – a valuable reference to determine the specific problems accurately.

Autel DS808S-TS with 30+ Maintenance Service

A well-bred horse deserves a good saddle. A real comprehensive OBD diagnostic scanner requires all-in-one functions.DS808S-TS diagnostic tool has been upgraded with over 31 service functions, such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. Moreover, DS808S-TS can be constantly upgraded with more functions to meet your various maintenance needs.

• Oil Reset - Reset the oil life system and turn off the oil light after oil or oil filter replacements.
• EPB - Reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
• BMS - Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.、Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.
• DPF - Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
• Injector Coding - Write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
• SAS Calibration - Calibrate the steering angle after replacing steering related parts.
• Suspension Level Calibration - Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
• Throttle Adaption - Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
• Sunroof Initialization - Initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
• Seats Calibration - Specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
• And more...

Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.

Autel DS808S-TS Advanced Function -

Bi-Directional Control

Autel DS808S-TS, automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

Digital Inspection with MV108S:

This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.

Battery Test with BT506 :

To produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health.

Autel DS808S-TS Other Supportive Features

1. Shop Manager feature keeps all data files, customer information, and vehicle records and history well organized on tablet
2. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
3. Automatic system and software updates with real-time Wi-Fi push notifications

4. One-stop multitasking is designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

Autel DS808S-TS Specification:

Autel DS808S-TS Package List:

• 1x DS808S-TS main unit
• 1x VCI Mini
• 1x Mini USB Cable
• 1x Power adapter
• 1x User Manual
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide

FAQ

Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?

A: We have warehouses in France,Spain,Germany. If you are located in the EU, the products will be dispatched from the warehouse nears you, the logistics time is 3-7 days, and Free shipping, you don't need to pay other fees.

Q: When does 1 year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?

A: The 1-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After 1 year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.

Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?

A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
