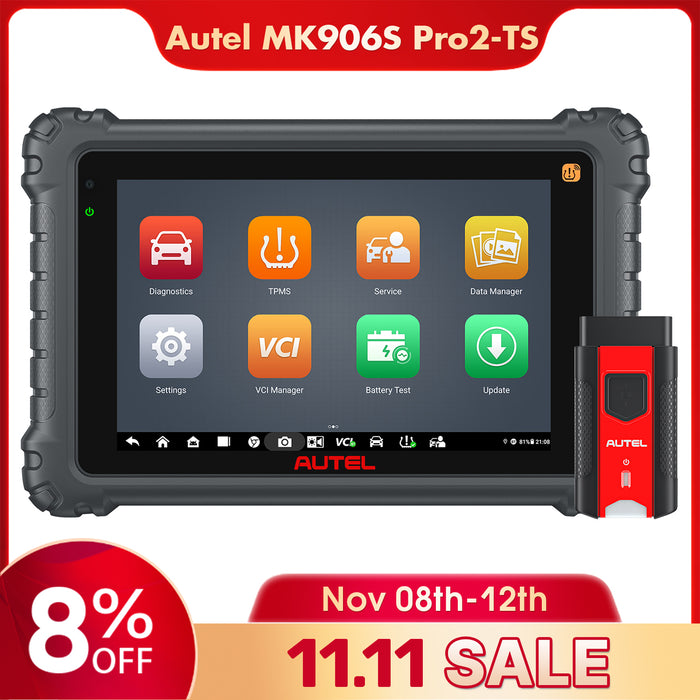

Autel MaxiCOM MK906 Pro-TS

As Autel 2024 newest diagnostic scan tool, MK906 Pro-TS is equipped with Android 7.0 OS/Exynos octa-core Pro-TScessor with 4G RAM & 128GB for super smooth operation/8-inch 1920*1200 touchscreen/5MP & 16MP double cameras/11600mAh battery.

Compare to MK906 Pro,MK906 Pro-TS with the integrated TPMS module,can provide Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel 1-Sensor to replace 99% of TPMS sensors on the road today.

Autel MaxiCOM MK906 Pro-TS Complete TPMS Functions

Autel MK906 Pro-TS diagnostic scanner comes with comprehensive TPMS and OBDII diagnostic functions and able to diagnose the newest models up to 2024. It is loaded with all TPMS functions to activate all known OEM TPMS sensors, view sensor data, program Autel MX-Sensors, and perform TPMS relearn and diagnosis.

TPMS Relearn/Replaced

This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are four ways for Relearn: OBD II Relearn, Automatic Relearn,Stationary Relearn,Copy Relearn.

OBD Relearn: OBD Relearn is completed via the OBD diagnostic function without needing to drive, and the relearn procedures are basically the same for different models,quite efficient and time-saving(Recommend)

Automatic Relearn:Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving

Stationary Relearn:Stationary Relearn can be completed without relying on driving and OBD diagnostics. To activate this mode, it is usually necessary to perform a series of operations to let the vehicle enter the relearn mode first, then use TPMS tools to perform activation or deflation to complete the relearn.

Copy Relearn:Copy Relearn is to clone the sensor ID and tire location. Before performing Copy Relearn, you need to first obtain the sensor ID and tire location needed to be cloned, then use Autel mk906 pro-ts to clone and program the sensor ID, and install the sensor to the corresponding tire to complete Copy Relearn.

Autel MX-Sensor Programming

This function allows to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not work. There are 4 ways to program MX-Sensor: Copy by Activation/OBD/INPUT/Auto Create. (Note:Programming function will only work with Autel MX-Sensor)

Copy by OBD: The tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.

Copy by activation: This function allows the user to copy the retrieved sensor ID from the activated sensor to the new MX-Sensor. It is used after the original sensor is triggered.

Copy by Input:This function allows users to program a new MX-Sensor with the ID of an original TPMS sensor.

Auto Create 1-20 Sensors:This function is used to automatically create a random sensor ID to program a new MX-Sensor.

TPMS Retrofit: This function is used to install the TPMS system in vehicles. A TPMS retrofit is only required if your vehicle is not installed with a TPMS system.

TPMS by OEM Part NO./For Workshop and Tire shop

If the mounted sensor is faulty and the part number is known to the technician, the technician can use this method to check the original sensor, and then write the retrieved information into a new MX-Sensor via Programming function.

If a customer needs to replace one or more tires including sensors, or purchase a lot of sensors for one vehicle model and the OEM part number of this model is known, this function can be used to program up to 20 sensors at the same time.

Advanced ECU Coding

Autel MK906 Pro-TS Pro-TSfessional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

OE-Level Full Systems Diagnosis/Active Test

The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel MaxiCOM MK906 Pro-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.

• Read DTCs – It can access to the depth of every on-board systems to read and analysis the DTCs
• Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
• ECU Information – get the retrieved ECU information in detail.
• Live Data Stream – a valuable reference to determine the specific problems accurately.

Bi-Directional Control (Active Test)

MaxiCOM MK906 Pro-TS automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

36+Special Reset Services

Autel MK906 Pro-TS bluetooth scanner is loaded with 36+ reset functions for in-depth and comprehensive repairing & maintenance.

Oil Reset: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
EPB: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc
SAS: The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.
DPF: The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
Brake Bleed: ABS Brake Bleeding
​​Seat Calibration: Calibrate the memory in replaced or repaired seats
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
​​A/F Reset: Set or learn Air/Fuel ratio parameters
​​Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
​​Suspension Reset: Adjust the vehicle body height sensor for level calibration
​​BMS: Battery registration and reset
And More......

Note: Reset functions may vary due to different vehicle,if you need some specific reset functions for your car ,please send us your car model/year and VIN number to check.

Why Choose Autel MaxiCOM MK906 Pro-TS?

• No IP Restriction - You can use MK906 Pro-TS all over the world
• New Brand  Hardware Upgrade - Adopting Samsung Exynos octa-core processor with 128GB Storage, extremely fast and smooth; Equipped with 11600mah high-capacity battery, durable and long-lasting; Upgraded to 8-inch 1920*1200 resolution touch screen, 5MP front camera, 16MP rear camera, clear and detailed.
• Compeleted TPMS Services - Autel MK906 Pro-TS comes Integrated TPMS antenna module for performing comprehensive TPMS service. Tire pressure sensor activation, programming, learning, modification and other tire pressure functions
• OE-Level Full Systems Diagnosis - MaxiCOM MK906 Pro-TS can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB among other on-board systems. You can read, clear their codes thus turning off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
• 31+ Service Functions - MK906 Pro-TS has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
• Battery Tester - Autel automotive tool MK906 Pro-TS works with Battery Tester to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.
• 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
• Autel Cloud Service - MaxiCOM MK906 Pro-TS supports Autel Cloud Service, including remote expert service, one click help, device management/report management, intelligent and comprehensive.

Autel MaxiCOM MK906 Pro-TS Main Features

1. 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core Pro-TScessor with 128 GB storage and running Android 7 operating system.
2. Long-lasting 11,600 mAh rechargeable battery, 5 MP front camera and 16 MP rear camera.
3. MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication Pro-TStocols.
4. Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
5. AutoScan: Scan all available systems, including ADAS identification
6. Read/Erase Codes, View Freeze Frame and Live Data
7. Perform Active Tests (bi-directional controls), Coding and Adaptations
8. AutoVIN/Scan VIN for rapid vehicle identification
9. Battery analyzation capability*
10. Cloud-based Reports and Data Management
11. Remote Expert (coming soon)
12. With additional purchase of the MaxiBAS BT506 battery and electrical system tester.

Autel MaxiCOM MK906 Pro-TS Add-on Functions

MaxiCOM MK906 Pro-TS is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Pro-TSjector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

1. MK906 Pro-TS connects to a MV108S inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
2. Autel automotive tool MK906 Pro-TS works with Battery Tester(BT506) to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.

Autel MaxiCOM MK906 Pro-TS Specification:

Autel MaxiCOM MK906 Pro-TS Package List

• 1x MaxiCOM MK906 Pro-TS main unit
• 1x MaxiVCI V200
• 1x AC/DC Adapter (12V)
• 1x Type C USB Cable
• 1x Cigarette Lighter Adapter
• 2x Spare Fuse(6*30mm)
• 1x USB to Ethernet Adapter
• 1x Soft Cloth
• 1x User Manual
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide
