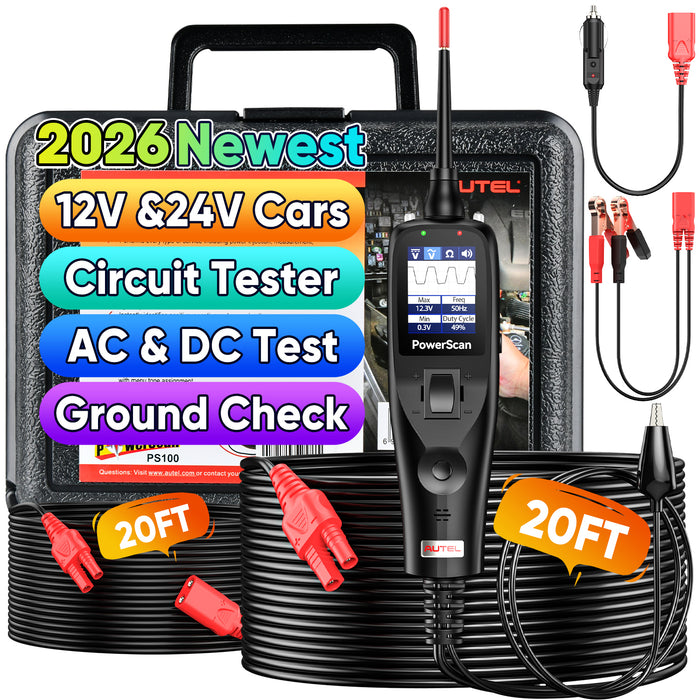

Autel PowerScan PS100 Automotive Circuit Tester Universal 12V/24V Power Circuit Probe Tool 20ft Extension Cable

The most revolutionary circuit tester tool--Autel PowerScan PS100

The most revolutionary circuit tester tool--Autel PowerScan PS100. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan PS100 is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

PowerScan PS100 Circuit Tester Feature and Functions:

• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Simultaneously uses the hot lead and the ground lead to activate components right in your hand
• Instantly identifies positive, negative and open circuits
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• Instantly checks continuity of switches, relays and diodes
• Circuit breaker protected
• Built-in Flashlight enables you to work in the dark
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle
• Extremely easy to use and highly reliable

PS100 4 Advanced Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

DC Voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

AC Voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

Resistance

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

Tone On/Off

While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.

This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

Activating Components with PS100 in Your Hand

While the PS100 tool is in DC Voltage mode, by using the probe tip in connection with the auxiliary ground lead, components can be activated right in your hand, thereby testing their functions. It will test the positive, negative, and open circuit easily, also testing for continuity, diagnosing circuit failures, checking good and bad grounds, easy to read AC/DC current activating components on and off the vehicle, sensing MIN /MAX voltage, etc. By generating activation signals for the components, Autel Circuit Tester Automotive Tool can judge whether the components are in good condition, such as lights, motors, wipers, radiator fans, relays, etc.

Testing Trailer Lights and Connections

While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground, probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
If the circuit breaker tripped, that contact is likely a ground. Reset the circuit breaker by letting it cool down for 15 seconds and depressing the reset button until it clicks into place.

20FT Cable + 20FT Extension Cable

Autel PS100 Automotive Power Circuit Probe Tester comes with 20 feet long cord plus 20 feet extension cord. Combining the feature that it can be powered by the cigarette lighter, and alligator clip for convenient ground connection, you can test electrical circuit system anywhere around the longer vehicles and trailers.

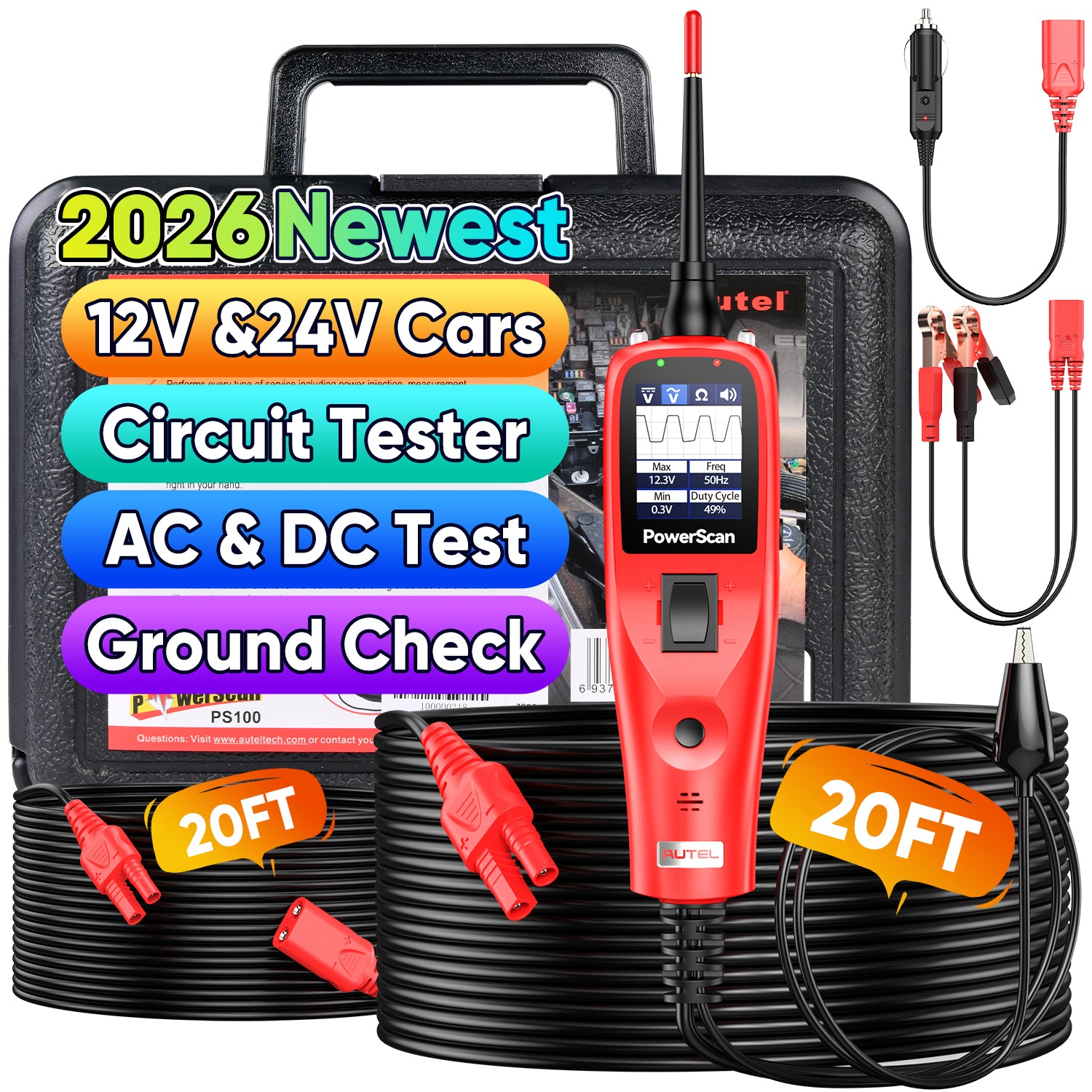

Autel PowerScan PS100 Package including:

• 1 × PowerScan PS100
• 1 × Rugged blow molded case
• 1 × 20ft. extension cable
• 1 × Probe tip
• 1 × Battery hookup clips
• 1 × Cigarette lighter adapter
• 1 × User's Manual

PS100 Circuit Tester Specifications
