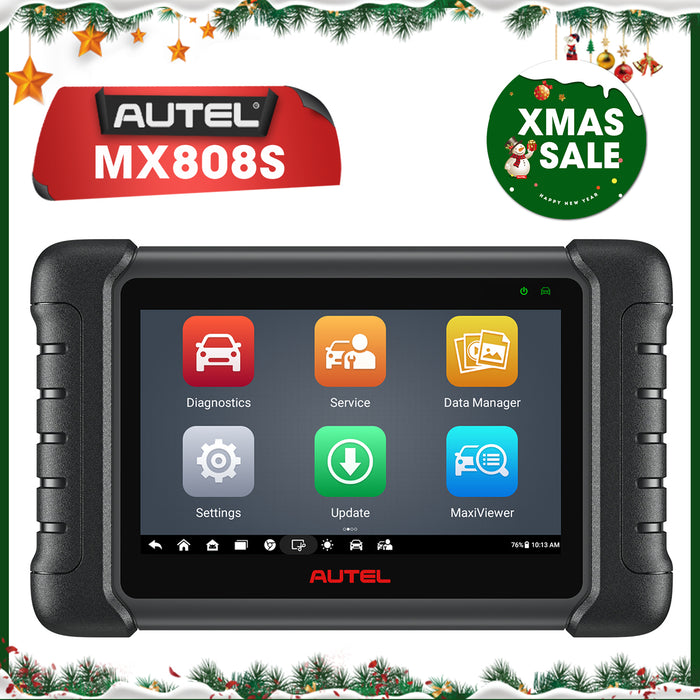

Autel MaxiCheck MX808S
If you are a DIYer,want to diagnose or fix your own car with limited budget,Autel Maxicheck MX808S will be your best choice.
Autel Maxicheck MX808S,upgrade of MX808/MK808,is a full-featured OBD2 diagnostic scanner.
- 2024 newest ✅Android 11 OS fast boot-up and multitasking without pressure, 5X faster.
- Powerful ✅Cortex-A55 processor perform diagnostics quickly and efficiently.
- ✅4GB RAM & 64GB ROM to save more vehicle documents and customer data.
- ✅7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- ✅5000mAh battery
And as Autel basic-level diagnostic scanner,MaxiCheck MX808S integrates ✅Advanced Bi-Directional Control✅OE-LEVEL full Systems Diagnostics✅ 28+ Special Reset Functions✅10000+ brands vehicle coverage✅Multi-language
2024 New Upgraded-Bi-Directional Control
3000+ Active Test: Maxicheck MX808S automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay,Fuel Pumps test, EGR test, etc.
Autel MaxiCheck MX808S OE-Level All System Diagnosis
MX808S diagnostic tool can access and diagnose All available vehicle modules. With complete capabilities for codes, live data and ECU Info, it reads & clears codes on all ECUs and show live data in text, graph or analog.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function. Before performing this function, make sure the vehicle’s ignition key is in the ON (RUN) position with the engine off.
Live Data: This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
Autel MaxiCheck MX808S Special Reset Functions
MX808 as an upgrade diagnostic version of MaxiCOM MK808S, Supports a wide range of special function services, including Oil Reset, EPB, SAS, BMS, DPF, and many more.
-
Oil Reset - This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
-
EPB - his function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
-
SAS - The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
-
DPF - The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. The ECM monitors driving style and selects a suitable time to employ regeneration.
-
Brake Bleed - ABS Brake Bleeding
-
Seat Calibration: Calibrate the memory in replaced or repaired seats
-
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
-
A/F Reset: Set or learn Air/Fuel ratio parameters
-
Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
- Suspension Reset: Adjust the vehicle body height sensor for level calibration
-
BMS - Battery registration and reset
More like : Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Language Change, Headlamp......
Note: Reset functions may vary due to different vehicle models ,if you want a specific reset functions for your car ,please send us your vehicle information(Model/Year/VIN number) to double check.
Digital Inspection with Autel MV108S: When work with Autel MV108S ,MX808S can examine difficult-to-reach areas normally hidden from sight, record digital still images and videos, in a safe and quick way. You can choose the set :Maxicheck+MV108S.
Autel MaxiCheck MX808S Main Features
-
Global version ,NO IP block,you can use the machine all over the world.
- Work for multi-brand vehicle, 90% model in the market
- Read and erase codes for all available systems
- View and graph Live Data
-
AutoVIN technology automatically identifies vehicle make, model, and year
- Perform bi-directional Active Tests, perform Coding and Adaptations
- Powerful Cortex-A55 processor (1.8 GHz) processor
- 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- 64GB on-board memory for better performance
-
Android 11 operating system for fast boot-up and multitasking
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Reset Electronic Parking Brake
- Perform DPF regeneration
- Reset Injectors
- Suport battery registration and reset
- Compatible with Videoscope MV108S
- 1 Year free update
Multi-language: Maxicheck MX808S support Multi-language ,including: English, Spanish, French,German,Portuguese,Italian,Russian,Dutch,Romanian Turkish, etc. Note:If you need other language besides English ,please send the machine S/N number to us.
Autel MaxiCheck MX808S Specifications:
| Recommended Use: |
Indoor |
| Operating System: |
Android™ 11 |
| Processor: |
Cortex-A9 processor(1.5GHz) |
| Memory: |
64GB |
| Display: |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity: |
Mini USB 2.0; USB2.0; Wi-Fi; HDMI Type A; Micro SD card slot(supports up to 32GB) |
| Sensors; |
Light sensor for brightness auto changing |
| Audio Input/Output: |
Input: N/A, Output: buzzer |
| Power and Battery: |
3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life: |
Around 7 hours of continuous use |
| Battery Charging Input : |
5V/1.5A |
| Power Consumption: |
600 mA(LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp.: |
0 to 55°C(32 to 131°F) |
| Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
| Operating Humidity: |
5%-95% non-condensing |
| Dimensions (W x H x D): |
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight |
788 g (2.42 lb.) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, SAE J2610,GM UART, Honda Diag-H Protocol,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), UART Echo Byte Protocol, TP2.0, TP1.6 |
Autel MaxiCheck MX808S Package List
- 1 x MX808S Tablet
- 1 x USB External Power Adapter
- 1 x USB Cable(for testing)
- 1 x USB Cable(for charging)
- 1 x Quick Reference Guide
- 1 x User Manual
- 1 x Carry case
FAQ
Q: What's the difference between MX808S and MX808
A: Upgraded from MX808,Autel MX808S equiped with Android 11,4G RAM,support wifi 5G,will work faster and smoother.Most importantly,it is multi-language
Q：Warranty ？
A: 1 Year
Q：Free softeare update?
A:1 Year.If you don't update after 1 year ,it still can work normally,just cann't update to latest function.
Q：VAT?
A:No VAT ,free ship from EU warehouse ,no other fee.
Q：Can i put my company info on invoice?
A:Yes,we can put info as your request
Q：Technical support?
A:Yes,lifetime,we can provider technical support from autel official
