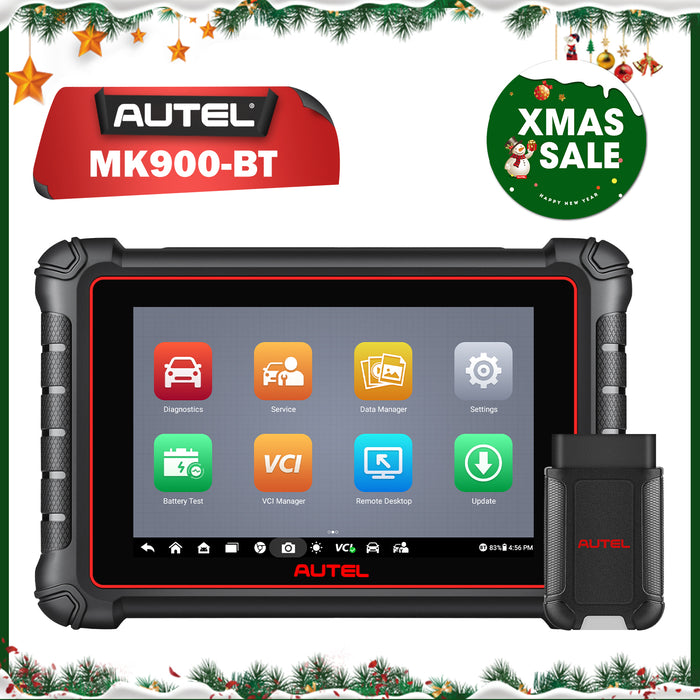

2024 New Released- Autel MaxiCOM MK900BT
Autel Maxicom MK900BT Pro is the updated version of Maxicom MK808BT, Based on the ✅Android.11 multitasking operating system,✅8 inches LCD screen,✅4GB+64GB memory,✅7700mAh battery,Most important ,it has a ✅8M Rear Camera.✅Pre&Post Scan✅Wifi Print✅40+ Service✅Full System Diagnosis.✅1 Year Free Update
And with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the Maxicom MK900BT is your ideal auto diagnostics and service tool, providing you with superior functions.
OE-Level All System Diagnosis For 150+ Brands
Bluetooth OE Level All System Diagnosis- Autel MaxiCOM MK900BT diagnostic tool can access and diagnose All available vehicle modules wirelessly. Works well on 150+ car makes and models worldwide (1996 and newer) to perform OE level diagnostics: read and clear codes, view live data, retrieve ECU info, and show live data in text, graph or analog.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
40+ Special Reset Services
The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances.
By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.
Oil Reset: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
EPB: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc
SAS: The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.
DPF: The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
Brake Bleed: ABS Brake Bleeding
Seat Calibration: Calibrate the memory in replaced or repaired seats
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
A/F Reset: Set or learn Air/Fuel ratio parameters
Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
Suspension Reset: Adjust the vehicle body height sensor for level calibration
BMS: Battery registration and reset
And More......
Note: Reset functions may vary due to different vehicle,if you need some specific reset functions for your car ,please send us your car model/year and VIN number to check.
Active Test/Bi-Directional Control
The Active Test function is used to access vehicle-specific subsystem and component tests. During an active test, the tablet sends commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
Add-on Funtions with other Autel Tools:
Battery Test : With Autel BT506,The Battery Test BT506 allows you to perform in-vehicle battery test and out-vehicle battery test functions when it is connected to the MK900-BT and a battery. Enables technicians to view the health status of the vehicle's battery and electrical system.(Choose set MK900BT Pro+BT506)
Digital Inspection: With Autel MV108S, This allows you to examine difficult-to-reach areas normally hidden from sight,with the ability to record digital still images and videos, in a safe and quick way.(Choose set MK900BT Pro+MV108S)
Multi-language:
Maxicom MK900BT is multi-language ,Support : English/German/Spanish/French/Portuguese/Russian/Italian/Dutch/Swedish/Polish/Japanese/Korean etc. The device will come with default language English ,if you need other language ,you can choose language you need at the setting ,and go to update section ,update all software in this language version,then this language version is ready to use.
Autel MaxiCOM MK900BT Specifications
| Operating System |
Android 11 |
| Processor |
Quad core Processor(1.8GHz) |
| Memory |
4GB RAM & 64GB ROM |
| Display |
8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera |
8 MP |
| Connectivity |
USB Type-C |
| USB 2.0 |
| Wi-Fi |
| Bluetooth |
| Mini SD card (supports up to 64GB) |
| Audio Input/Output |
Input: N/A |
| Output: buzzer |
| Power and Battery |
3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply |
| Battery Charging Input |
5 V/3 A |
| Operating Temp |
0 to 50°C (32 to 122°F) |
| Storage Temp |
-10 to 60°C (14 to 140°F) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Autel MaxiCOM MK900BT Package List
1 x MK900BT Tablet
1 x MaxiVCI V150
1 x Power Adapter
1 x USB Cable
1 x Quick Reference Guide
1 x Carring Case
Q & A
Q : What's the difference between MK900-BT and MK808BT Pro?
A : Please check the below comparison table,MK900BT has upgraded hardware with bigger screen,larger capacity battery,with rear camera ,support DoIP,CANFD, and with more advanced VCI V150,so it can cover more cars ,and more service functions.
