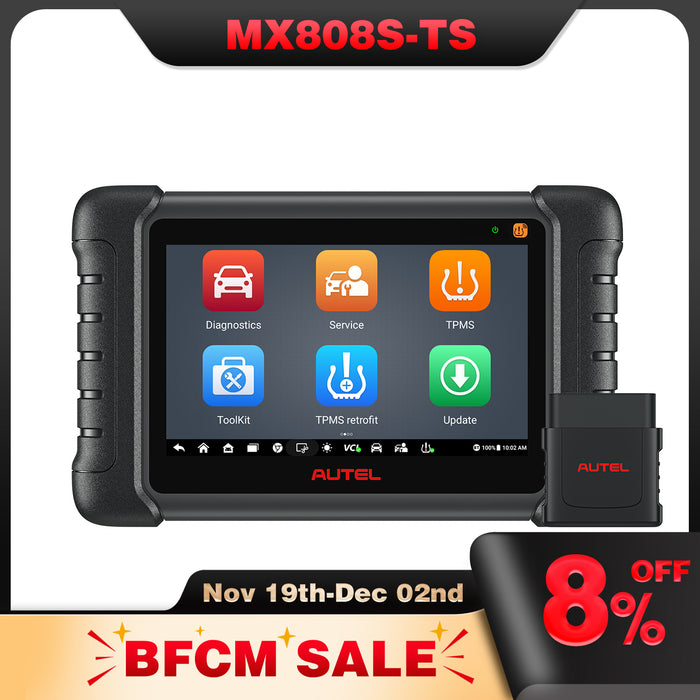

Autel MaxiCheck MX808S-TS

Autel 2024 Newest Dignostic & TPMS Tool - MaxiCheck MX808S-TS, compared to its previous generation MX808TS, a lot more fantastic functions such as Coding, TPMS programming/ activation/ relearning have been added. Professional TPMS features save you from spending unnecessary bucks on buying a separate TPMS scan tool.

Autel MaxiCheck MX808S-TS Compelete TPMS Services

Autel MaxiCheck MX808S-TS is a perfect combination of Autel MX808S and TS601. It is specially designed to fix all the TPMS issues, best used for complete TPMS health check, sensor activation, relearn , program, TPMS sensor retrofitting.

TPMS Relearn/Replaced

This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are four ways for Relearn:OBD II Relearn, Automatic Relearn,Stationary Relearn,Copy Relearn.

OBD Relearn: OBD Relearn is completed via the OBD diagnostic function without needing to drive, and the relearn procedures are basically the same for different models,quite efficient and time-saving(Recommend)

Automatic Relearn:Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving

Stationary Relearn:Stationary Relearn can be completed without relying on driving and OBD diagnostics. To activate this mode, it is usually necessary to perform a series of operations to let the vehicle enter the relearn mode first, then use TPMS tools to perform activation or deflation to complete the relearn.

Copy Relearn: Copy Relearn is to clone the sensor ID and tire location. Before performing Copy Relearn, you need to first obtain the sensor ID and tire location needed to be cloned, then use Autel mx808s-ts to clone and program the sensor ID, and install the sensor to the corresponding tire to complete Copy Relearn.

Autel MX-Sensor Programming

This function allows to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not work. There are 4 ways to program MX-Sensor: Copy by Activation/OBD/INPUT/Auto Create. (Note:Programming function will only work with Autel MX-Sensor)

Copy by OBD: The tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.

Copy by activation: This function allows the user to copy the retrieved sensor ID from the activated sensor to the new MX-Sensor. It is used after the original sensor is triggered.

Copy by Input:This function allows users to program a new MX-Sensor with the ID of an original TPMS sensor.

Auto Create 1-20 Sensors:This function is used to automatically create a random sensor ID to program a new MX-Sensor.

TPMS Retrofit: This function is used to install the TPMS system in vehicles. A TPMS retrofit is only required if your vehicle is not installed with a TPMS system.

TPMS by OEM Part NO./For Workshop and Tire shop

If the mounted sensor is faulty and the part number is known to the technician, the technician can use this method to check the original sensor, and then write the retrieved information into a new MX-Sensor via Programming function.

If a customer needs to replace one or more tires including sensors, or purchase a lot of sensors for one vehicle model and the OEM part number of this model is known, this function can be used to program up to 20 sensors at the same time.

2024 NEWEST UPGRADED FUNCTION

BI-Direction Test: Used for outputting signal to vehicle control unit using the device to control actuator for test, so that it can test whether the actuator works normally, such as Fuel Pumps test, EGR test, etc.

OE-level Full Systems Diagnosis

The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel MaxiCheck MX808S-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.

• Read DTCs – It can access to the depth of every on-board systems to read and analysis the DTCs
• Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
• ECU Information – get the retrieved ECU information in detail.
• Live Data Stream – a valuable reference to determine the specific problems accurately.

Autel MaxiCheck MX808S-TS Special Reset Services

 MX808S-TS diagnostic tool has been upgraded with over 30+ service functions, such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. Moreover, MaxiCheck MX808S-TS can be constantly upgrade with more functions to meet your various maintenance needs.

• Oil Reset - reset the oil life system and turn off the oil light after oil or oil filter replacements.
• EPB - reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
• BMS - reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.、Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.
• DPF - Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
• Injector Coding - write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
• SAS Calibration - calibrate the steering angle after replacing steering related parts.
• Suspension Level Calibration - adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
• Throttle Adaption - Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
• Sunroof Initialization - initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
• Seats Calibration - specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
• And more

Note: Reset functions may vary for different vehicle ,if you need a specific reset function for your car,please send your vehicle information(model/year/VIN number) to us to check.

Why Choose Autel MaxiCheck MX808S-TS?

• Compelete TPMS Services - Combination of MX808S and hand held TS601 which is a solid and well respected TPMS tool. As Advanced TPMS diagnostics for complete TPMS health check. Autel MX808S-TS can activate sensors, retrieve data, clone and program Autel MX-Sensors and pinpoint faults on exclusive TPMS Status Screen.
• A Key to Access On-board Systems - ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System.. Autel Newest Diagnostic tool MaxiCheck MX808TS can solve the vast majority of problems with your vehicle.
• 30+ Special Functions - Autel MaxiCheck MX808S-TS Supports 30+ commonly used hot functions to meet the needs of daily maintenance diagnostic and reset.
• Wireless Diagnosis - Conducting wireless diagnostics through VCMI module, Newest diagnostic tool MX808S-TS will set you free from entangled wires.
• Language: Multi-Language,Support English/French/German/Spanish/Portuguese/Italina etc.13+Languages
• 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device

Autel MaxiCheck MX808S-TS Main Features

• Extensive vehicle coverage for more than 80 US, European,Asian vehicle makes and models
• Exceptional OE-level system coverage for all electronic systems
• Complete capabilities for codes, live data, ECU information, adaptation, matching, etc.
• Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote control tech support anytime, anywhere
• Advanced TPMS diagnostics with DTC description
• TPMS status, one step for complete TPMS health check
• Activate 98% of all known TPMS sensors
• Program AUTEL MX-Sensor
• Comprehensive OBD relearn coverage
• On-screen relearn procedure
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Active Test
• Special Fuction
• Battery Test(with BT506)
• Digital Inspection(with MV108S)

Newest Autel MX808S-TS Other Supportive Features

1. Shop Manager feature keeps all data files, customer information, and vehicle records and history well organized on tablet
2. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
3. Automatic system and software updates with real-time Wi-Fi push notifications

4. One-stop multitasking is designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

Autel Maxicheck MX808S-TS Specification

Autel MaxiCheck MX808S-TS Package List

• 1x MaxiCheck MX808S-TS main unit
• 1x MaxiVCI 200
• 1x Mini USB Cable
• 1x User Manual
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide

Some Information You Wish You Know Before Buying

Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?

A: We have  France, Germany, Spain and other warehouses in Europe. If you are located in the EU, the logistics time is 3-5 days,Free shipping, you don't need to pay other fees.

Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?

A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.

Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?

A: Our products can be used on any OBD2 protocol vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
