Black Friday 26% Off Autel MaxiDas DS808S-BT Kit Diagnostic Scanner |Upgraded of DS808 | ECU Coding |Active Test |31+ Services|OE-Level All Systems Diagnostics |Multi-Language

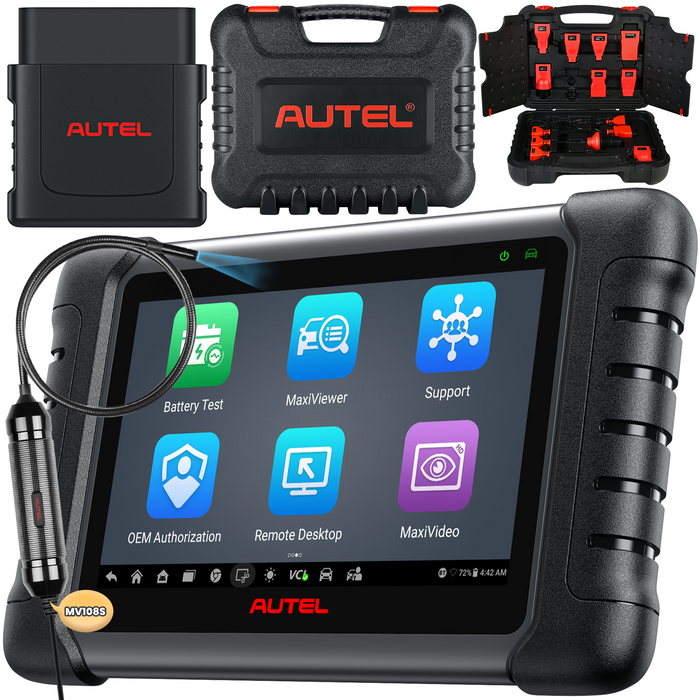

Autel MaxiDAS DS808S-BT Kit

As 2024 New Released Autel MaxiDas DS808S-BT Kit,It has a great upgraded from both Hardware and Software to reach a Workshop level diagnostic scan tool.

It equipped with Rockchip RK3566, Android 11.0 OS,4+64GB RAM/ROM

Most importantly,Autel MaxiDas DS808S-BT Kit can do advanced ECU coding ,refresh hiding functions for some car brands ,and can work with MV108S and BT506 to expanded level.

With a box of 11 non-standard OBD adapters,which can serve more vehicles with different DLC.

Why Choose Autel MaxiDAS DS808S-BT Kit?

• No Blocking - You can use DS808S-BT Kit all over the world
• Cost-Effective Choice - Less than 300.00 for MS906, Get almost the same diagnostic functions and services. After get it, It has already saved you hundreds in trips to the mechanic for diagnostics and resets.
• OE-Level Diagnosis - MaxiDAS DS808S-BT Kit is an automotive diagnostic scanner that can access all available ECU modules. And perform OE-Level diagnosis
• 31+ Service Functions - DS808S-BT Kit has More Than 31+service functions options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
• Advancd Functions - Bi-dirctional Control: with bi-directional control (active test) capability over various car systems, and components like solonoids, relay, switch, valves, sunroof, window, door and perform active test.
• 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
• Support Multi-Language - English/Spanish/German/French/Portuguese/Italian etc. 13+Languages.

Autel MaxiDAS DS808S-BT Kit Main Features

1. Extensive vehicle coverage for more than 80+ US, Asian and European vehicle makes
2. Exceptional OE-Level system coverage for all electronic systems
3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
4. Smart AutoVIN technology for identifying vehicles easily
5. Automatic system and software updates with real-time push message notifications via Wi-Fi
6. Instant remote control tech support anytime, anywhere
7. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
8. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
9. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
10. Convenient data management system for managing internal program applications and reviewing data

Advanced ECU Coding

Autel DS808S-BT Kit comes with ECU coding for BMW/Porsche/VW/Nissan/Hyundai etc.Help to Unlock hidden features,Change dislike settings,Code the blank modules,Improce vehicel performance.

Accessing Manufacturer-Specific Codes: DS808S-BT Kit can access to manufacturer-specific codes, allowing users to perform coding functions that are specific to particular vehicle makes and models. This includes accessing hidden features or customizing various parameters within the ECU.
Enabling/Disabling Vehicle Options: With DS808S-BT Kit , users can enable or disable specific options or features within a vehicle. For example, they can activate or deactivate functions like auto-locking doors, daytime running lights, or seat belt reminders. This level of customization allows users to tailor their vehicle's behavior according to their preferences.
Performance Tuning: Autel scanners offer performance tuning capabilities, allowing users to enhance the performance of their vehicles. This includes adjusting engine parameters, such as fuel-to-air ratio, ignition timing, boost pressure, or throttle response. By optimizing these settings, users can improve power output, fuel efficiency, or overall driving experience.
Coding Retrofits: Autel scanners support coding retrofits, which means users can add new components or modules to their vehicles and code them into the existing ECU. For example, if a user wants to install aftermarket headlights, they can code the ECU to recognize and control the new headlights properly.

Autel MaxiDAS DS808S-BT Kit OE-Level Diagnostic

DS808S-BT Kit is an automotive diagnostic scanner that accesses all available ECU modules including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, and SCCM. And perform OE-Level diagnosis on ABS, SRS(Airbag), Engine, Transmission, Brake Systems and etc. This scan tool can read and clear DTCs on all car systems and show live data steam of multiple sensors in graph and text.

Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

Autel MaxiDAS DS808S-BT Kit Special Reset Services

DS808S-BT Kit Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more.

1. Oil Reset: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
2. EPB: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3. SAS: The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
4. DPF: The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. The ECM monitors driving style and selects a suitable time to employ regeneration.
5. Brake Bleed: ABS Brake Bleeding
6. ​​BMS: Battery registration and reset
7. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
8. More ......

Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.

Autel MaxiDAS DS808S-BT Kit Additional Functions

DS808S-BT Kit remote technical supports with the help of which Autel technical engineers get access to the MaxiDAS DS808S-BT Kit diagnostic scanner remotely, which greatly simplifies the maintenance of diagnostic equipment, shortens the processing time of applications.

Active Test

Active Test function is used to access to vehicle-specific subsystem and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators such as switching a solenoid, relay, or switch between two operating states.

Digital Inspection with MV108S:

This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.

Battery Test with BT506

Autel DS808BT Kit can do battery test with Autel BT506, To produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health.

Autel MaxiDAS DS808S-BT Kit Specifications

Autel MaxiDAS DS808S-BT Kit Package List:

• 1 x DS808S-BT Main Unit
• 1 x USB External
• 1 x Power Adapter
• 1 x USB External Power Adapter User
• 1 x Manual Quick reference guide
• 1 x Main cable Carry case
• 1 x Mini USB Cable
• 1 x User Manual
• 1 x Quick Guide
• 1 x a box of adapters

FAQ

Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?

A: We have France, Germany, Spain and other warehouses in Europe. If you are located in the EU, the logistics time is 3-5 days,  Free shipping, you don't need to pay other fees.

Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?

A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.

Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?

A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
